AQUA Logic - Inline Backwash 3/4 - 50 mcr - Sediment Filter - (build-in water filter)

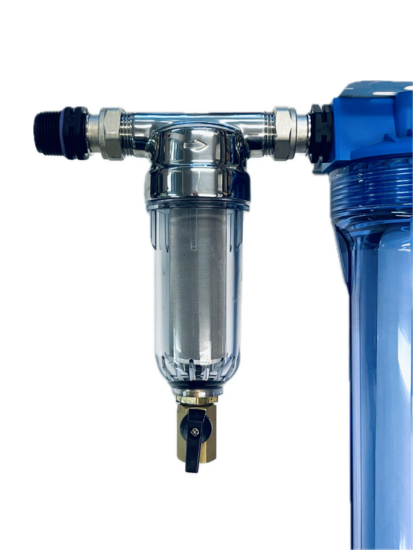

This Backwash sediment filter provides extra protection for your water installation and is very suitable as a pre-filter for the AQUA Logic - Inline Duo and Inline Pre-Filter combi for off the grid.

74,00 *
Price per unit
In stock
Shipping costs € 0,00
Delivery time: Shipped in 1-2 business days

Weight: 0,650 kg

Product number: 10058

EAN: 8720726095457

remove add


Product specification

Usage

Way of use Built-in water filter

Filtration properties

Pore size / Sieve perforation 50 micron
Suitable against Coarse sediments such as sand and mud

Technical information

Product Dimensions Ø 60mm x 200mm
Connection type 3/4 inch conduit entry and exit

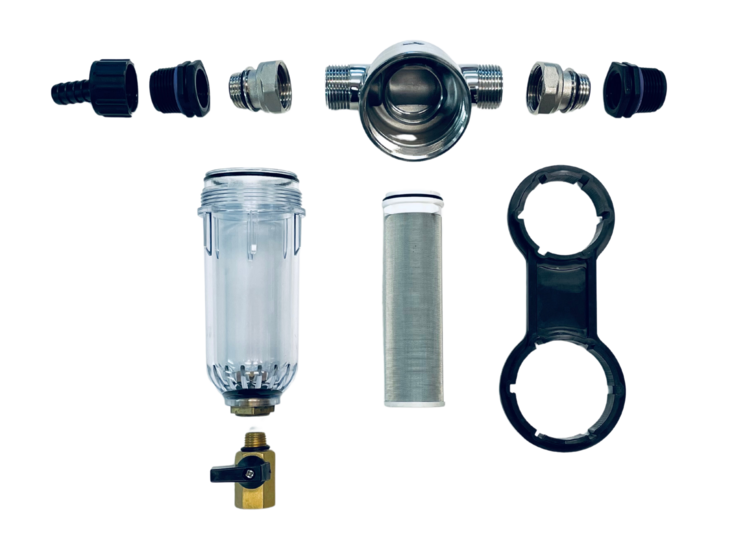

Package contents

Stainless steel backwash filter housing
Filter Element - 50 micron sediment filter
Tensioning bracket to open the filter housing
Swivel nut, ¾" x 13mm
2x Self-Seal reducing ring, male thread x female thread, ¾" x ½"
2x Tailpiece, swivel x male thread, ¾" x ½"
1/4 Ball valve with O-ring
User manual (Dutch, English)

Product description

50 Micron Screen Perforation

The sediment filter cartridge, with a sieve perforation of 50 microns, filters the coarsest sediments such as sand and mud from, for example, rainwater or other natural water. This extends the life of your appliances, pipes or water filters.

Back Wash System

The back-wash system means that the filter housing has a drain with a ball valve so that the filter can be easily rinsed clean and the trapped dirt can be flushed out of the filter.

Filter housing

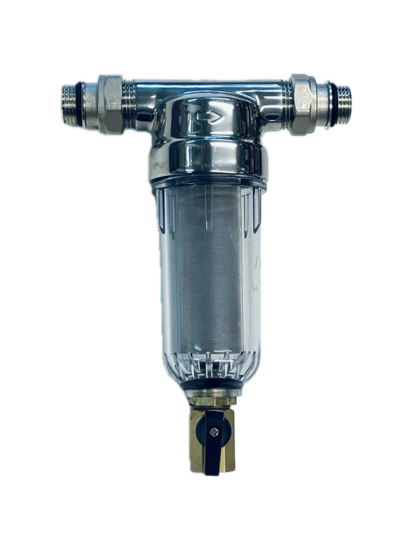

This filter housing has a stainless steel lid and a transparent bowl, made of PET material and has a ¾ inch pipe in and out.

And last but not least

Care is important when using and maintaining this water filter, as it concerns the safety of your drinking water!
