AQUA Logic - Tiny House / Mobile Home Filter set

Compact 3-stage water filter set for tiny houses and mobile homes. Reduces chemicals and PFAS and blocks microplastics, bacteria and viruses.

€ 482,50
Price per unit
In stock
Shipping costs € 0,00
Delivery time: Shipped in 1-2 business days

Weight: 7,000 kg

Product number: 11011 (10057-11002-30051)

EAN: 8720726095730

Variation:
AQUA Logic - Tiny House / Mobile Home Filter set
AQUA Logic – Entire Home Filter Set
remove add
Order


Product specification

Usage

Way of use Built-in water filter

Filtration properties

Filter material Ultra-membranes | Activated carbon granules | Polypropylene
Pore size / Sieve perforation 0,01 - 0,03 micron
Bacteria reduction LOG 6 | >99.9999%
Suitable against Protozoa (including Giardia and Cryptosporidium) and bacteria (including Cholera, Typhus, Legionella and E. Coli)
Reduces Taste, odor, PFAS, lead, chlorine, pharmaceutical residues and other chemicals

Technical information

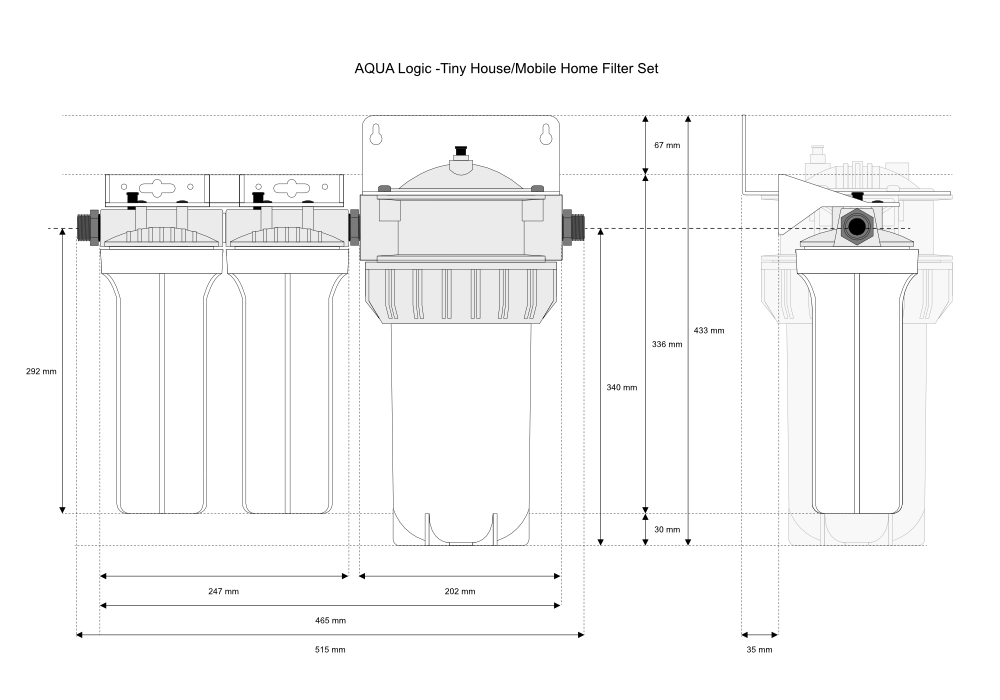

Product Dimensions L 50 X B 21,5 x H 69 cm
Connection type 3/4 inch conduit entry and exit
Flow capacity 25-30 L / min
Shelf life Unused, the filter has an almost unlimited shelf life (store in a cool, dry and dark place)

Package contents

2x 10" Inline filter housing 3/4
Filter element - Inline - PP - 5mcr - 10 INCH
Filter Element - Inline - Carbon Granulate - 10 INCH
Tensioning bracket to open the filter housing
2x 3/4 Nipples with O rings
2x 3/4 Hose pillars 13mm with O rings
Date sticker (for marking the year when the filter was commissioned)
10" Inline XL filter housing 3/4
Filter Element - Inline XL - Ultra Washable - 0,01mcr - 10 INCH
2x 3/4 Nipples
2x Reducing nipple 3/4 x 1/2
User manual (Dutch, English)

Product description

Complete 3-stage water filtration for the whole house

The AQUA Logic Tiny House / Mobile Home Filter Set is designed for situations where space, weight and easy maintenance matter. Ideal for tiny houses, off-grid living, expedition trucks, converted lorries or large campers on long journeys. This set combines powerful pre-filtration with ultra-fine membrane technology, effectively blocking sediment and chemicals as well as bacteria, viruses and microplastics. When combined with the optional Backwash filter, this system is also suitable for making rainwater safe to drink.

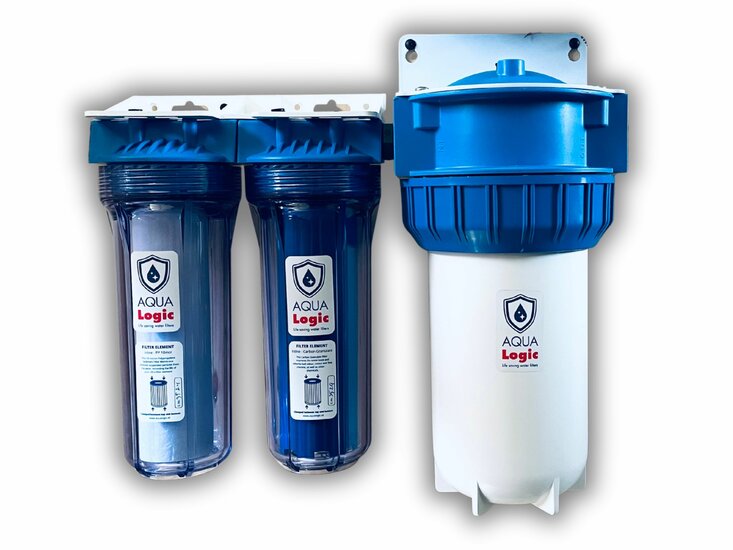

Contents of the set

AQUA Logic Inline Pre-Filter Combi – 10 inch (PP + Carbon Granulate)

  • 5 micron sediment filter: removes larger particles and extends the lifespan of fine filters.
  • Activated carbon granulate: reduces taste, odor, PFAS, lead, chlorine, pharmaceutical residues and other chemicals.

AQUA Logic Inline XL Ultra Washable – 0.01 µm – 10 inch

  • Ultra-fine membrane (0.01 micron): reliably blocks bacteria, protozoa, viruses and micro/nanoplastics.
  • Washable and reusable: can be cleaned multiple times, significantly extending its lifespan.

Adapter nipple ¾” x ½”

  • For flexible connection to various pipe sizes.

For more information about the individual components, click the product links above.

Optional add-ons

AQUA Logic Inline Backwash – 50 µm – Sediment Filter

  • Recommended when using rainwater or surface water. This coarse pre-filter blocks sand and organic matter, protecting the Pre-Filter Combi and Ultra Washable. Thanks to the built-in ball valve, the filter can be easily flushed clean.

AQUA Logic UVC-LED Water Sterilizer – 30 LPM

  • Depending on the situation, the Ultra Washable can be reserved for drinking water only. For shower or household water, the UVC-LED Sterilizer safely inactivates bacteria and viruses, significantly extending the lifespan of the Ultra Washable.

Benefits

  • Comprehensive protection: reduces chemicals, PFAS and heavy metals and effectively blocks bacteria, viruses and microplastics.
  • Compact & versatile: designed for tiny houses, campers and expedition vehicles
  • Travel-friendly maintenance: ultra membrane is washable and reusable
  • Easy installation: includes adapter nipple for different piping systems.
  • Proven performance: bacteria reduction >10^6 per ml (log-6).
For a complete household we always recommend the 20-inch version: Entire Home Filter Set

Use & maintenance

  • Pre-Filter Combi lifespan: approx. 1 year (depending on water quality).
  • Ultra Washable membrane lifespan: multiple years with regular cleaning.
  • First use: do not drink the first 5 liters of filtered water.

Disclaimer

This water filtration system is designed to reduce and block a wide range of contaminants to levels generally considered safe for household use. However, it may be less effective against water heavily polluted with industrial chemicals or other hazardous substances. Although the water quality is significantly improved, the system is not intended for specialized or medical use. Individuals with weakened immune systems or specific health conditions are advised to take extra precautions and consult a professional if necessary.
