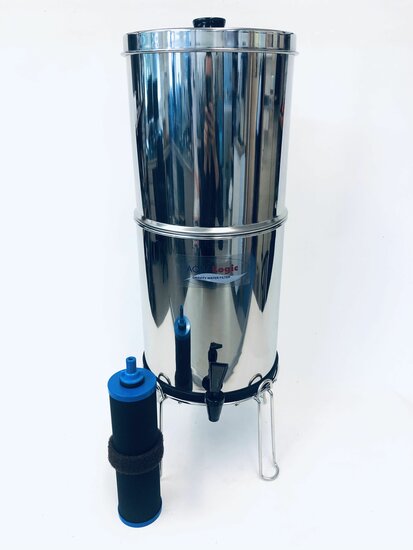

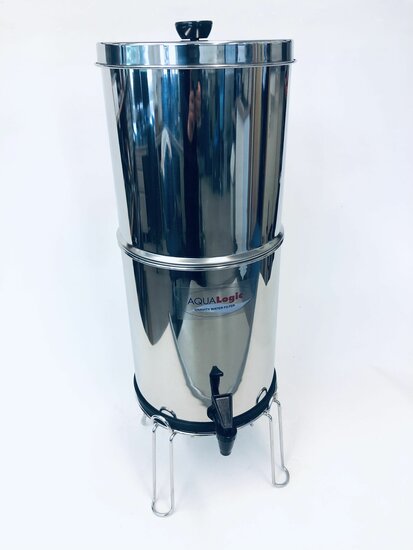

AQUA Logic - Gravity RVS - CS-Ultra - 0,03mcr - Filter Set - (gravity water filter)

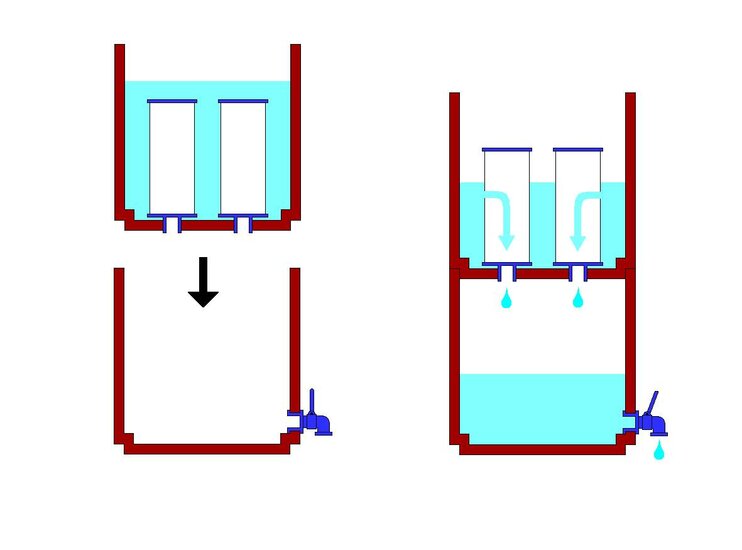

The AQUA Logic Gravity Mini water filter functions by means of gravity. The water flows slowly from the top Water Container, through the filter, into the bottom Water Container. The water reservoirs have a capacity of 8.5 liters each.

Emergency drinking water filter

Our water filters are being used worldwide in emergency and disaster situations where there is a lack of clean and safe drinking water. Disease caused by contaminated water is unfortunately the number 2 cause of death worldwide and even the number 1 cause of death among children up to 5 years old. Often more people die from the disaster after the disaster than from the disaster itself. With your purchase you support the work of the IBOTA Foundation and making this water filter available to those in need.

The AQUA Logic Gravity filter is a drinking water filter designed for situations where the regular water supply is unreliable due to water pollution or contamination. The filter is capable of producing high-quality, safe, and clean drinking water. It is particularly effective in environments heavily contaminated with microorganisms, providing an excellent solution for combating waterborne diseases such as Cholera. Additionally, the filter operates without the use of chemicals and is composed of maintenance-free and corrosion-resistant components.

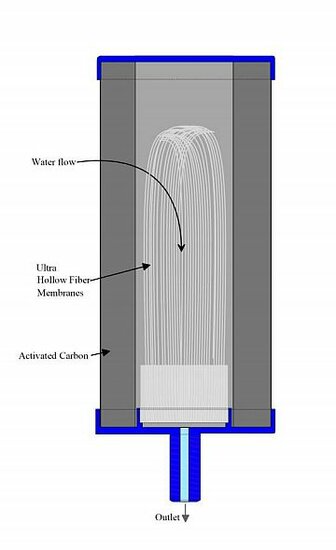

Filter characteristics 3in1 CS-Ultra Filter Element:

1.    Activated carbon cylinder
The activated carbon consists of 100% organic material (coconut shell) and has a very high adsorption capacity. Activated carbon adsorbs odor, color and taste, metals such as lead, as well as yeasts, chlorine, medicine residue and other chemicals.

2.    Nano Silver Impregnation
Colloidal (Nano) Silver is applied to the activated carbon. The Nano Silver coating inhibits the growth of bacteria and microorganisms in water, ensuring safer and cleaner drinking water. This effect is achieved as the Nano Silver particles disrupt the cell walls of microorganisms and impede their reproduction, significantly reducing the risk of water contamination and the spread of pathogens. This allows you to enjoy high-quality water with increased safety and purity.

3.    Ultrafiltration membranes with a pore size of 0.03 micron
Filters: Pathogenic organisms: Log 6 bacterial reduction: >99.9999% (including Cholera, Shigella, Typhus, Klebsiella Terrigena, Legionella and e. Coli) and Cysts / Protozoa (including Giardia and Cryptosporidium) Micro- and Nano plastics from a size of 0.03 microns (300 nanometers)

How to use this water filter

Always use the most clean water source that is available and preferably use the filter in a clean environment.

1.    First of all, the recommended replacement date of the water filter must be indicated on the supplied date sticker and must be visibly pasted on the water filter. The recommended period of use is 1 year, after which the filter element must be replaced.
Note: The actual life span of this water filter will depend on the level of contamination in the water source. As long as there is water coming out through the filter, will this water be suitable drinking water because it has been filtered through the ultra-membranes, provided the water filter is used as explained in this user manual.

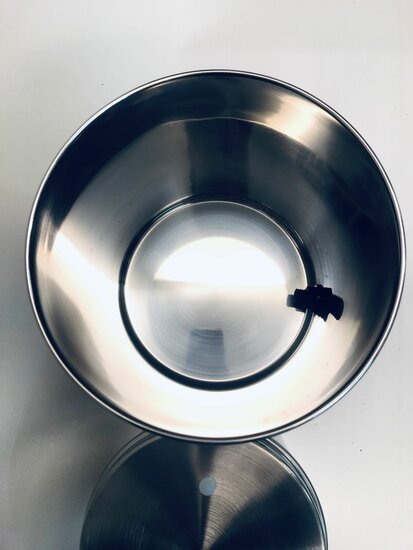

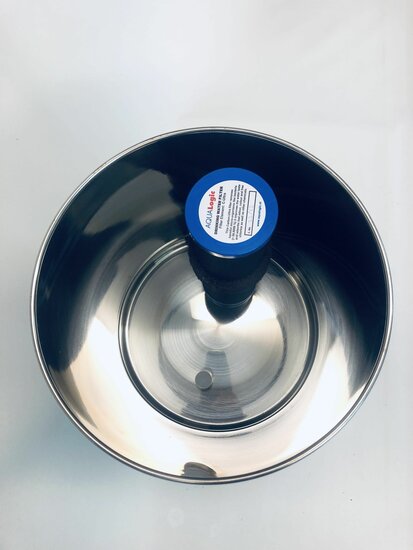

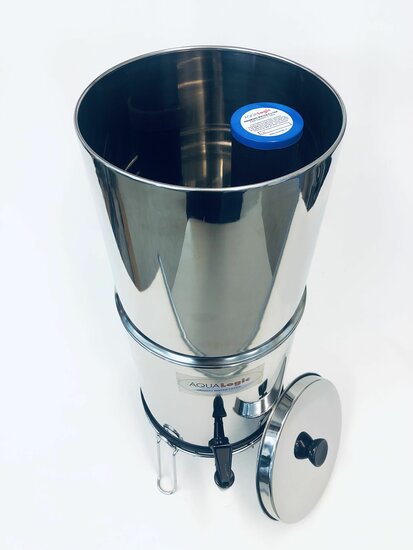

2.    The filter element can now be installed in the water reservoir. Insert the filter outlet, equipped with a sealing ring, through the hole in the bottom of the water reservoir. Place a second sealing ring around the filter outlet and securely tighten the nut.

3.    Stack the two water reservoirs on top of each other and fill the upper one with the water you wish to purify. The water will start to seep through the filter element after a few minutes. As the water level in the upper reservoir decreases, the flow rate of the filtered water will also decrease.

Tip: Keep the upper water reservoir topped up to have quicker access to more filtered water.

4.    Before consuming the filtered water, flush the new filter element with 5 liters of water. After this, you are ready to enjoy pure water with your water filter.

Maintenance

A layer of water containing the sediment / settlings always remains in the waste water reservoir. The purpose of settling is the removal of undissolved particles from the water. If the density of the particles is greater than that of water, they move to the bottom under the influence of gravity. Discard this layer of water when refilling the water reservoir.

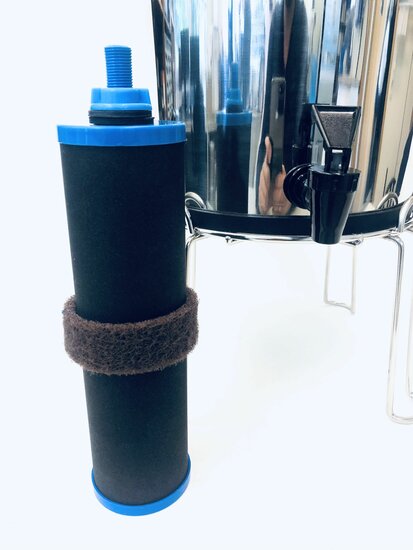

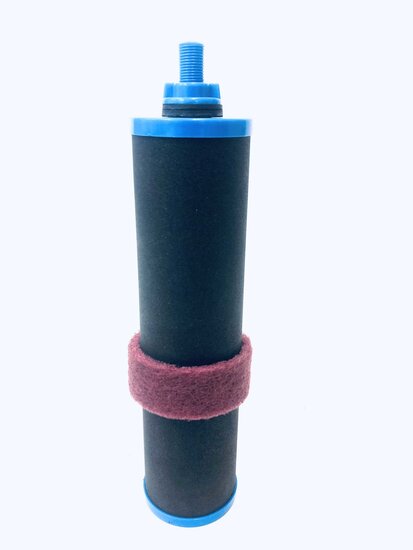

•    The filter element can be easily cleaned when the waterflow decreases: The filter element surface can be sanded clean using the integrated Cleaning Pad. Then rinse the filter element with water.

•    Clean the water containers regularly by washing them with water and soap and then rinsing them with clean water.

How to store after usage

Wet: store the filterelement in the refrigerator. We recommend adding Cosil47 Water Filter Disinfectant solution:
1.    Fill the top water reservoir with clean (filtered) water and add Cosil47 Colloidal Silver as instructed in the user manual of Cosil47.
2.    Let this water run through the filter cartridge and allow it to become saturated with it.
3.    Disassemble the filter element and put it in a sealed container or bag and store it in the refrigerator.
4.    First flush the filter element again before using it again.

Dry: remove the filter sleeve from the cartridge and find a suitable place to let the filter dry without developing molds. But prevent the plastic caps to get heated by, for example, a heater / radiator.

Filter characteristics

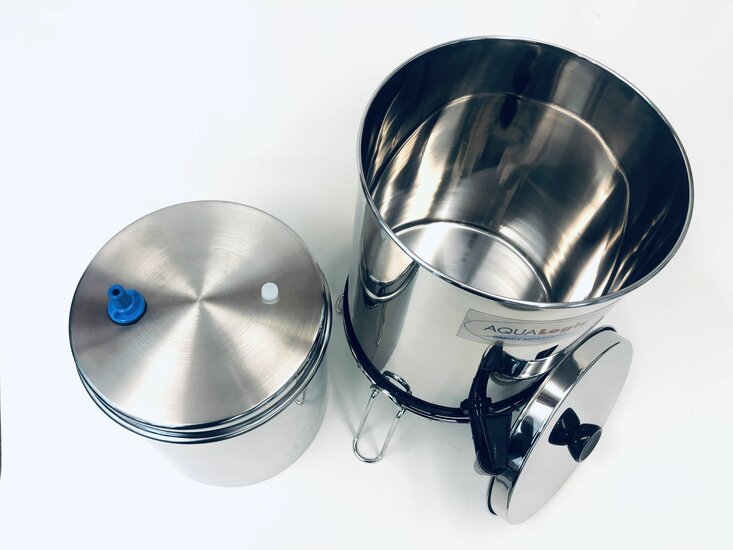

This Gravity water filter model has space and the possibility to place and use a second water filter element.
All parts are Food-Grade and BPA-Free.

Shelf life and Life Span:

Unused, the filter has an almost unlimited shelf life (store in a cool, dry and dark place)
The recommended period of use is 1 year.

Note: The actual life span of this water filter will depend on the level of contamination in the water source. As long as there is water coming out through the filter, will this water be suitable drinking water because it has been filtered through the ultra-membranes, provided the water filter is used as explained in this user manual.

Taste experience

It is often said that there is no arguing about taste. Many users of this water filter find that the filtered water tastes better. Especially when there is chlorine in the water, this is reduced by the activated carbon and the taste is greatly improved. However, there are also users who find the filtered water less tasty. In the core of this water filter it is intended to provide clean and safe drinking water in emergency situations.

Technical data:

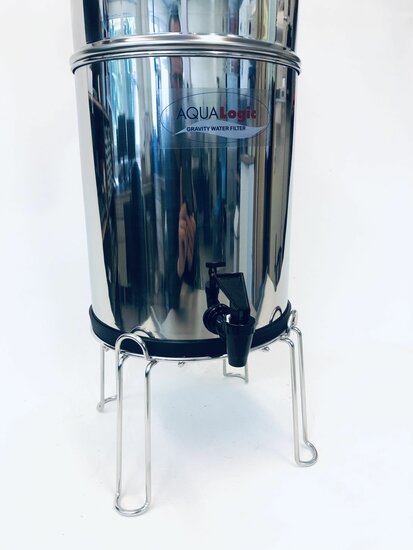

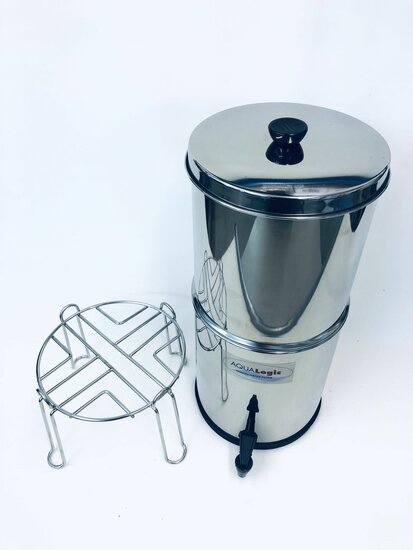

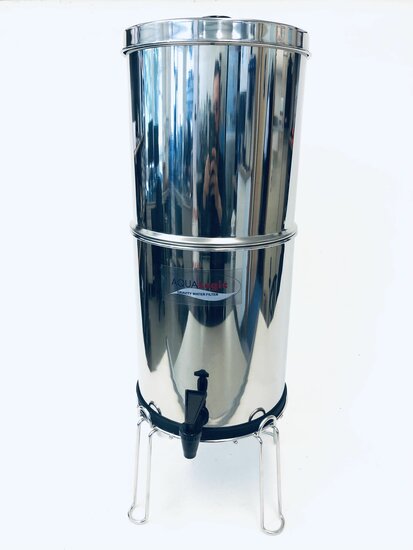

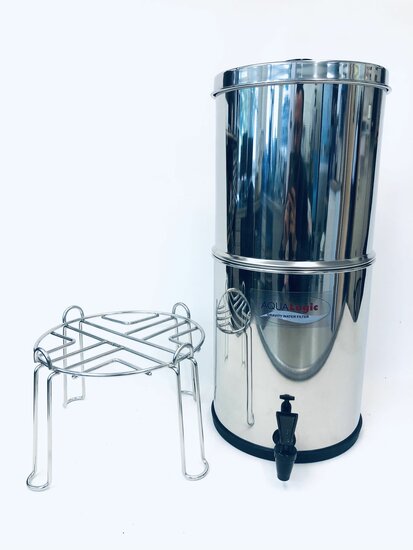

Dimensions stainless steel water container including stand:
Ø 210 mm x h 650 mm
