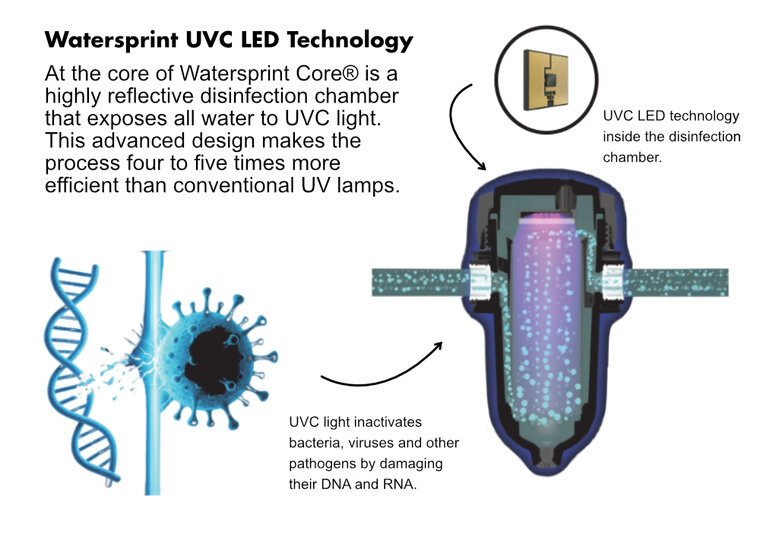

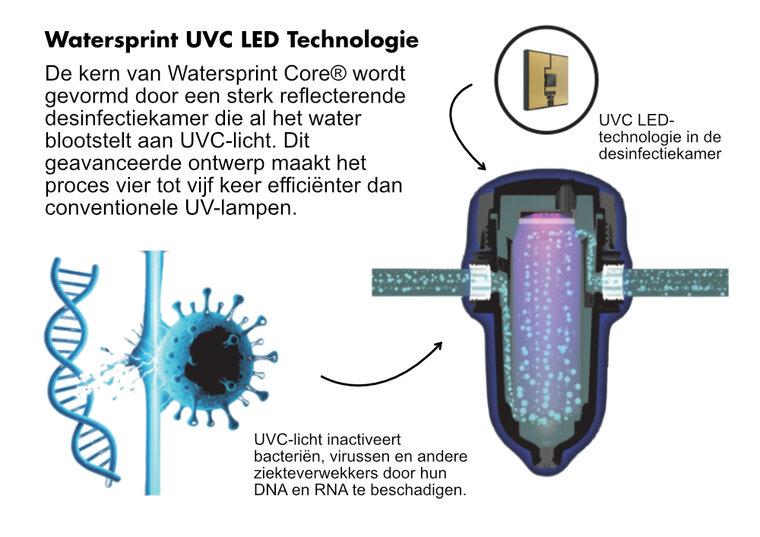

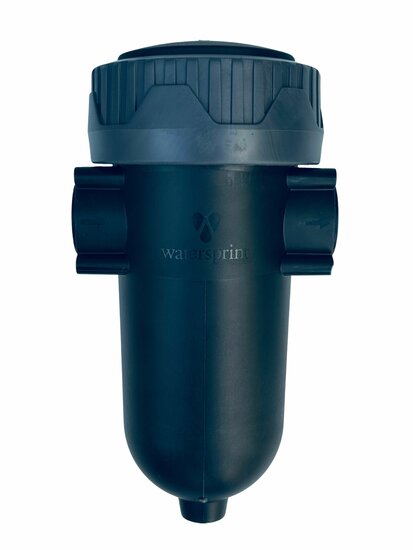

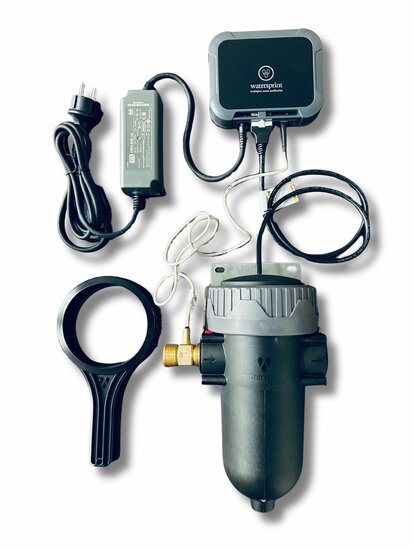

The Watersprint Core® is an advanced water disinfection system designed for installation on the main water supply line of homes, holiday houses and other buildings. The system treats all incoming water using powerful UVC LED technology, effectively inactivating bacteria, viruses, and other microorganisms before the water reaches the various outlets.
Through a smart combination of optimized flow dynamics, high-quality materials, and efficient UVC LED technology, the Watersprint Core® delivers a high level of disinfection performance without the use of chemicals. This helps provide microbiologically safer water throughout the entire building.
Unlike traditional UV systems, the Watersprint Core® utilizes durable UVC LEDs that offer a long service life, low energy consumption, and minimal maintenance requirements. Its compact design makes it easy to integrate into both new and existing water systems.
Benefits of the Watersprint Core®
Watersprint Core® eliminates viruses, bacteria, and pathogens, ensuring years of hassle-free, reliable water disinfection for your home. This advanced water disinfection system offers several advantages:
- Robust, reliable and compact design
- Instant start without warm-up time
- Low power consumption
- Low cost of ownership
- Long lifespan and easy maintenance
- Mercury-free UVC LEDs that are easy to handle
- No fragile and bulky glass tubes, like conventional UV lamps
Disinfection and flow
The disinfection performance of the Watersprint Core® 20 depends on the water flow. The slower the water flows through the system, the longer it is bound to UVC light and the higher the disinfection dose.
40 liters per minute: 30 mJ/cm² UVC dose
60 liters per minute: 16 mJ/cm² UVC dose
Flow Sensor

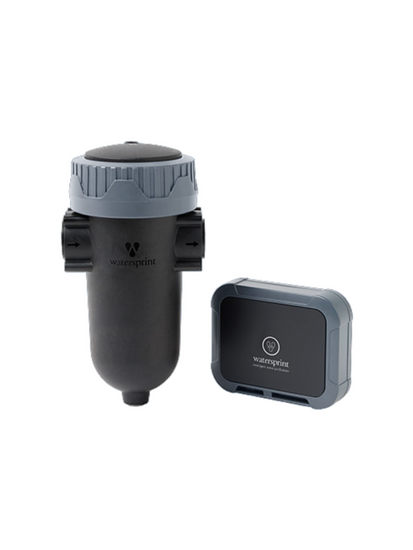

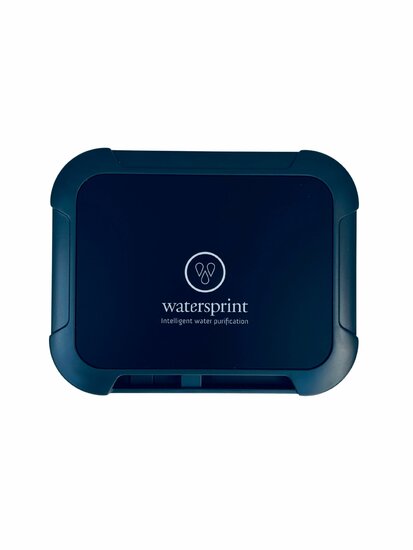

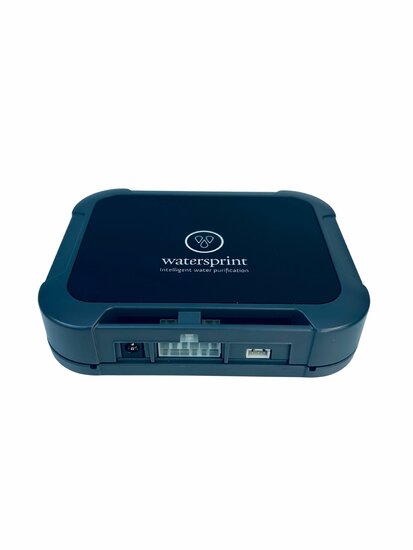

Thanks to the external flow sensor and control unit, the UVC LEDs are automatically activated as soon as water flow is detected. Unlike other UV light sources, the UVC LEDs deliver their full power immediately, ensuring the water is disinfected from the moment it starts flowing. Additionally, there is integration with Hygienic Pulsing™, a safety feature that activates the system during periods of inactivity to maintain excellent water quality.
Low Power Consumption
Since the water disinfection system enters standby mode when no water is flowing, it achieves significantly lower power consumption compared to conventional systems, using
>less than 1W in standby mode. Also, since the light source is off when no water is flowing, there will be no heat transfer to the water.
Long Service Life
The UVC LEDs are renowned for their exceptional durability, designed to provide you with 3 000 active hours of reliable service. This means you can enjoy 5-7 years of consistent, high-quality performance for a household of four before it is time to replace the light source
Dimensions
(Click on the image below for a larger version)
