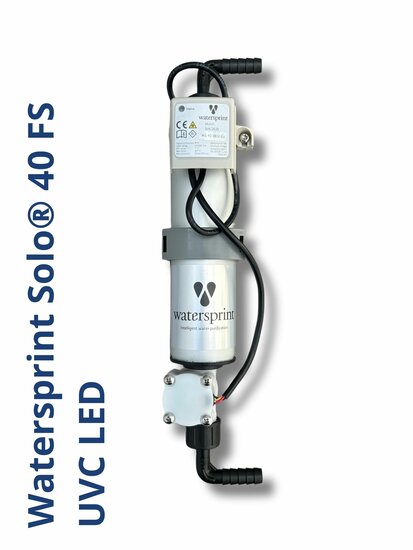

The Watersprint Solo® 40 FS is an advanced water disinfection system designed for direct installation at a drinking water tap. The system analyzes the water immediately before use using powerful UVC LED technology, effectively inactivating bacteria, viruses, and other microorganisms. This ensures you have immediate access to microbiologically safe drinking water, without the use of chemicals.
Thanks to a slim combination of fixed flow dynamics, high-quality materials, and affordable UVC LED technology, high disinfection performance is achieved in an extremely compact system. This makes the Watersprint Solo® 40 FS ideally suited for homes, recreational vehicles, boats, offices, healthcare facilities, and other applications where safe drinking water directly from the tap is desired.
Unlike traditional UV systems, the Watersprint Solo® 40 FS utilizes durable, mercury-free UVC LEDs with a long lifespan, low energy consumption, and minimal maintenance requirements. Thanks to its compact design, the system can easily be installed in both new and existing water installations. The version with an integrated flow sensor automatically switches on the UVC LEDs as soon as water is contaminated, ensuring efficient energy consumption and maximum system performance.
Benefits Watersprint Solo® 40 FS
The Watersprint Solo® 40 FS inactivates bacteria, viruses, and other pathogens directly before the tap and ensures reliable, worry-free drinking water disinfection for years. This advanced UVC LED system offers the following benefits, among others:
- Effective inactivation of bacteria, viruses, and other microorganisms
- Advanced, mercury-free UVC LED technology
- Compact design for easy installation in both new and existing water systems
- Integrated flow sensor for automatic switching on and off
- Immediately operational, without warm-up time
- Low energy consumption
- Low operating and maintenance costs
- Long lifespan of the UVC LEDs
- Robust and impact-resistant construction without fragile glass UV lamps
- Reliable performance and minimal maintenance requirements
Disinfection and flow
The disinfection performance of the Watersprint Core® 20 depends on the water flow. The slower the water flows through the system, the longer it is bound to UVC light and the higher the disinfection dose.
5 liters per minute: 30 mJ/cm² UVC dose
10 liters per minute: 16 mJ/cm² UVC dose
16 L/min: Maximum flow rate
Flow Sensor
Thanks to the external flow sensor, the UVC LEDs automatically activate when water flow is detected. Unlike other UV light sources, the UVC LEDs provide full output instantly without any warm-up time, ensuring that water is disinfected from the moment it begins to flow.
Low Power Consumption
Since the water disinfection system enters standby mode when no water is flowing, it achieves significantly lower power consumption compared to conventional systems, using
>less than 1W in standby mode. Also, since the light source is off when no water is flowing, there will be no heat transfer to the water.

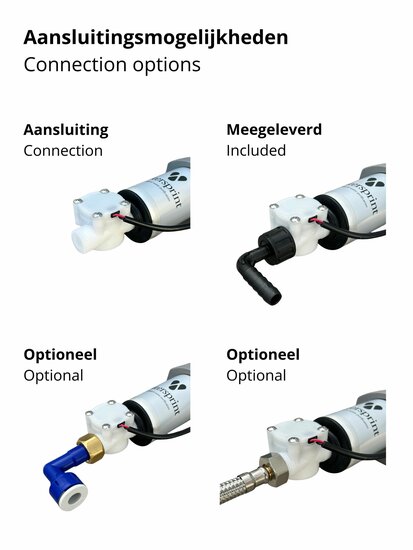

Connection Options
The UVC-Led Water Sterilizer features a 1/2" connection and can easily be integrated into various water systems.
Included: 90° hose connector with 1/2" union nut: suitable for flexible soft camping hoses.
Optioneel: Reich UniQuick connector with 1/2" union nut: for connection to 12 mm rigid camping hoses or braided flexible connection hose with 1/2" internal thread: for connection to fixed plumbing or kitchen fittings.
With the above connection options, the UVC-Led Water Sterilizer can be easily installed in a wide range of systems, whether in a home, tiny house, or camper.
Note: Follow the direction of water flow as indicated on the device. Make sure all connections are properly tightened to prevent leaks.
Dimensions
(Click on the image below for a larger version)
